Creating a Rivendell 4 dedicated appliance using Ubuntu Desktop 24.04 LTS Noble Numbat

Fred Gleason

Table of Contents

Overview
Prerequisites

Introduction

Overview

This HOWTO contains procedures for creating a dedicated Rivendell "appliance" system using the Ubuntu Desktop 24.04 LTS Noble Numbat distribution. While the screenshots are specific to Ubuntu Desktop, these instructions are also applicable to other distributions derived from it. Such distributions include:

Ubuntu Studio 24.04 LTS Noble Numbat

Installing Rivendell on Ubuntu Desktop consists of these primary steps:

Install the base distribution.
Bootstrap and run the installation script.

Prerequisites

The following items are required to complete the installation.

Target hardware. 64 bit (amd64) AMD or Intel architecture is supported. For the purposes of this HOWTO, the target machine will be assumed to have a single, blank hard drive. Installations utilizing multiple hard drives (including RAID arrays and ZFS filesystems) are possible, but beyond the scope of this HOWTO.
Note
Secure Boot should be disabled on the target hardware prior to beginning installation. Failure to do so may result in third-party drivers for certain hardware --e.g. AudioScience audio adapters-- failing to initialize properly.
A installer image for Ubuntu Desktop 24.04 LTS Noble Numbat, available at https://ubuntu.com/download/desktop. After downloading the ISO image, burn it to a blank DVD or make a "bootable" USB key using the instructions on the download web site.
A working Internet connection.
If you are planning to install in client mode, the IP address of the Rivendell server to which this instance will connect.

Installing the Base Distribution

Boot the Ubuntu Desktop 24.04 LTS Noble Numbat installation media (DVD or USB key). You should wind up at the initial boot screen.

Note

Depending on your specific hardware and BIOS settings, the appearance of the initial boot screen may vary from the example shown.

Highlight the Try or Install Ubuntu prompt and then press Enter to proceed to the Welcome to Ubuntu screen.

You will be asked to specify the language to use for the install. Choose and then touch the Next button to proceed to the Accessibility screen.

Configure any desired accessibility aids, then touch the Next button to proceed to the Keyboard layout screen.

Choose your desired keyboard layout and then touch the Next button to proceed to the Internet connection screen.

Select the Use wired connection radio button and then touch the Next button to proceed to the Try or install Ubuntu screen.

Note

Use of a wired network connection is highly recommended for Rivendell.

Select Install Ubuntu and then touch the Next button to proceed to the Type of installation screen.

Select Interactive installation and then touch the Next button to proceed to the Applications screen.

Select Default selection and then touch the Next button to proceed to the Optimize your computer screen.

Select the Install third-party software for graphics and Wi-Fi hardware and Download and install support for additional media formats options and then touch the Next button to proceed to the Disk setup screen.

Select the Erase disk and install Ubuntu option and then touch the Next button to proceed to the Create your account screen.

The following fields should be filled out as follows:

Your name:: Rivendell Audio
Your username:: rd

The remaining fields should be filled out as appropriate for your site. When all the fields are as you wish, touch the Next button to proceed to the Select your timezone screen.

Warning

Do not forget what you enter here, especially the Username and Password values! You will need this information to configure and use your Rivendell system.

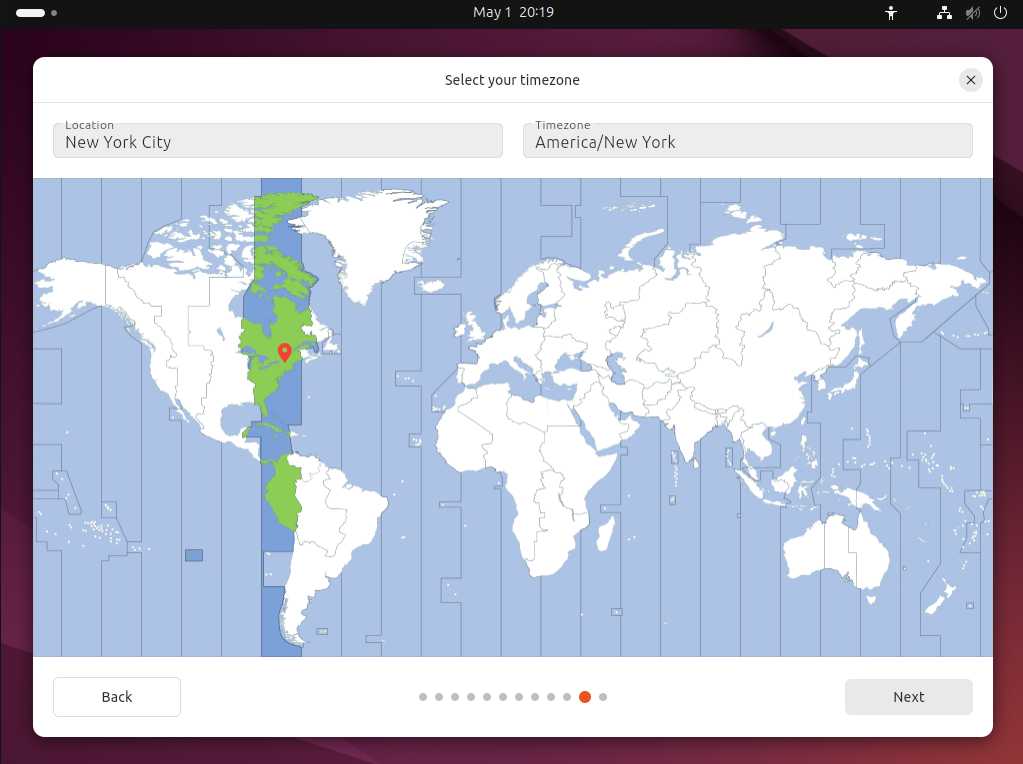

Choose the desired region for the time zone and then touch the Next button to proceed to the Ready to install screen.

Touch the Next button to begin the installation. Depending on the speed of your Internet connction, this will take anywhere from a few minutes to an hour or more.

When the installation is complete, touch the Restart now button to reboot the system.

The system may prompt you to remove the "installation medium" at this point. Remove the USB key and press ENTER.

The system will reboot and come up to the login screen. Login in as user "rd", using the password that you set earlier.

Note

If you ticked the Log in automatically checkbox when creating the user earlier, the login prompt will be skipped.

After logging in, you will see the Welcome dialog.

Touch the Next button to proceed to Ubuntu Pro screen.

Make selections as desired and then touch the Next to proceed to the Help improve Ubuntu screen.

Make selections as desired and then touch the Next to proceed to the Ready to go screen.

Touch the Finish button to exit the Welcome to Ubuntu utility.

Running the Installation Script

Do a right-click with the mouse on the desktop to pop-up a menu and choose the Open in Terminal item.

A Terminal window will appear.

Enter the following statements in the Terminal window exactly as shown, pressing the Enter key after each one:

wget https://software.paravelsystems.com/ubuntu/dists/noble/main/install_rivendell.sh -P .

chmod 755 install_rivendell.sh

sudo ./install_rivendell.sh

You will be prompted for the password for user rd. Enter the password that you set during the installation process.

Note

The password will not be visible on the screen as you enter it. This is normal.

The installer will now start up and display its main menu.

The installer supports three different "installation modes" for Rivendell, as follows:

Standalone: Install system components (Rivendell application code, MySQL database server and audio file store) on this machine, allowing it to operate as a completely self-contained and autonomous Rivendell system.
Server: The same as "Standalone", but will also configure the MySQL database and audio file store components to be shared with additional "client mode" Rivendell systems.
Client: Install just the Rivendell application components, configuring it to use the database and audio store on one or two shared server(s). You will be prompted for the IP address of the server(s), as well as the name of the database and the username / password of a MariaDB database account for accessing the Rivendell database on that server.
Note
When prompted to enter the IP address of the NFS server that holds the Rivendell audio store, simply hit the Enter key if it is on the same server as the MariaDB database (almost always the case).

Enter the number for the type of installation desired, then press the Enter key.

Depending upon the speed of the Internet connection, installation will typically take around fifteen minutes. When installation is complete, reboot the system with the command:

sudo reboot

After rebooting, the system is ready for service.
